● Large flow capacities achieved with almost no vibration, or noise, by use of the axial and mix flow design.
● HIGH-QUALITY BRONZE : Widely acclaimed for its ability to withstand corrosion, even to the erosion of sea water and brine and is proved to be able to substantially extend time to service,used on the Upper Cover, Bearing Bracket, & M. Seal Bracket of our pumps. (L-200/250/300A only)
● POWER-SAVING & HIGH-EFFICIENCY ALBC3 (Aluminum Bronze) IMPELLER : Utilizes wear-resistant and anti-corrosion ALBC3 (Aluminum Bronze) Impeller, the same material as the propellers of boats and vessels.
● Robust construction and compact design with a dry motor, double mechanical seals and impeller flow guide vane for high efficiency.
● Pump manufactured with heavy duty housing, cable leads are isolated by hardened epoxy for water proofing, and double mechanical seals.
● High solids, epoxy coating prolongs metals from corrosion and oxidization.
● L Series are equipped with Sacrificial Anode. Sacrificial Anode are create from a metal alloy with a more negative electrochemical potential. Sacrificial Anode are highly active metals, that are used to prevent pump material surface from corroding.
Technical Table of Contents (PDF)
✉ L 50Hz
✉ L 60Hz
✉ L 60Hz FEET
● HIGH-QUALITY BRONZE : Widely acclaimed for its ability to withstand corrosion, even to the erosion of sea water and brine and is proved to be able to substantially extend time to service,used on the Upper Cover, Bearing Bracket, & M. Seal Bracket of our pumps. (L-200/250/300A only)
● POWER-SAVING & HIGH-EFFICIENCY ALBC3 (Aluminum Bronze) IMPELLER : Utilizes wear-resistant and anti-corrosion ALBC3 (Aluminum Bronze) Impeller, the same material as the propellers of boats and vessels.
● Robust construction and compact design with a dry motor, double mechanical seals and impeller flow guide vane for high efficiency.
● Pump manufactured with heavy duty housing, cable leads are isolated by hardened epoxy for water proofing, and double mechanical seals.
● High solids, epoxy coating prolongs metals from corrosion and oxidization.
● L Series are equipped with Sacrificial Anode. Sacrificial Anode are create from a metal alloy with a more negative electrochemical potential. Sacrificial Anode are highly active metals, that are used to prevent pump material surface from corroding.
Technical Table of Contents (PDF)
✉ L 50Hz
✉ L 60Hz
✉ L 60Hz FEET
HCP pumps selection system
Quickly online search and model selection platform
Assist you to instantly get your model information
Experience immediately▶ https://e-selection.hcppump.com.tw/
50Hz
| Item | Description | |
|---|---|---|
|
Limits of Use |
Liquid Temp. | 0~40°C (32~104°F) |
| Applications |
Agriculture irrigation • Agriculture water • River water |
|
| Type | Frequency | 50Hz |
| Motor |
2P (3000rpm:0.5~1HP) • Dry Motor 4P (1500rpm:2~15HP) • Dry Motor |
|
| Insulation |
Class B (0.5~1HP) • Class F (2~3HP) • Class H (7.5~20HP) |
|
| Protection | IP68 | |
| Protector | Auto-cut (0.5~3HP) • None (7.5~15HP) | |
| Bearing | Ball type | |
| M.seal | Double M.seals | |
| Impeller | Axial (0.5~10HP) • Mixed flow (15HP) | |
| Material | Outer Cover | SUS304 |
| Upper Cover | FC200 (0.5~3HP) • BC6 (7.5~15HP) | |
| Motor Frame | FC200 (0.5~3HP) • SUS304 (7.5~15HP) | |
| Shaft | SUS304 | |
| M.seal |
CA/CE & SiC/SiC (0.5~3HP) CA/CE & CA/CE (7.5~15HP) |
|
| Casing | FC200 | |
| Impeller | ALBC3 | |
| Strainer | SUS304 | |
| Cable | VCT or H07RN-F or SOW/STOW | |
| Optional |
Pumps can be customized to fit specifications |
|
60Hz
| Item | Description | |
|---|---|---|
|
Limits of Use |
Liquid Temp. | 0~40°C (32~104°F) |
| Applications |
Agriculture irrigation • Agriculture water • River water |
|
| Type | Frequency | 60Hz |
| Motor |
2P (3600rpm:0.5~1HP) • Dry Motor 4P (1800rpm:2~20HP) • Dry Motor |
|
| Insulation |
Class B (0.5~1HP) • Class F (2~3HP) • Class H (7.5~20HP) |
|
| Protection | IP68 | |
| Protector | Auto-cut (0.5~3HP) • None (7.5~20HP) | |
| Bearing | Ball type | |
| M.seal | Double M.seals | |
| Impeller | Axial (L-300B/1220B : Mixed flow ) | |
| Material | Outer Cover | SUS304 |
| Upper Cover | FC200 (0.5~3HP) • BC6 (7.5~20HP) | |
| Motor Frame | FC200 (0.5~3HP) • SUS304 (7.5~20HP) | |
| Shaft | SUS304 | |
| M.seal |
CA/CE & SiC/SiC (0.5~3HP) CA/CE & CA/CE (7.5~20HP) |
|
| Casing | FC200 | |
| Impeller | ALBC3 | |
| Strainer | SUS304 | |
| Cable | VCT or H07RN-F or SOW/STOW | |
| Optional |
Pumps can be customized to fit specifications |
|

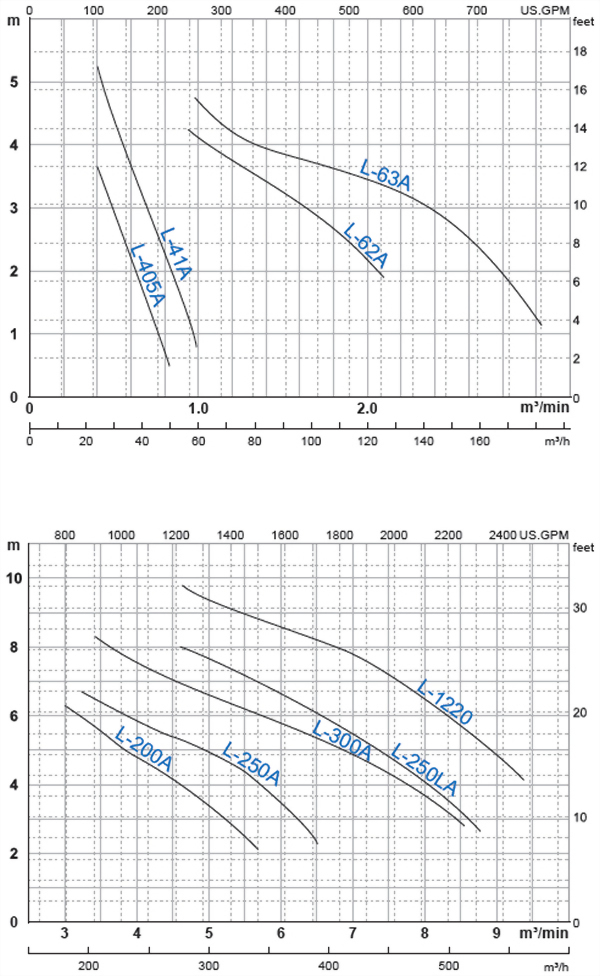

50Hz
60Hz
● Aquiculture water pumping and drainage for large volume water applications.
● Water supply for landscape, water features, cooling in the power plant or drainage for industrial.
● Water extracting from rivers, lakes and reservoirs.
● Flood control or used for large volume dewatering.
● Others : Extraction of water from dock and river.
● Water supply for landscape, water features, cooling in the power plant or drainage for industrial.
● Water extracting from rivers, lakes and reservoirs.
● Flood control or used for large volume dewatering.
● Others : Extraction of water from dock and river.
